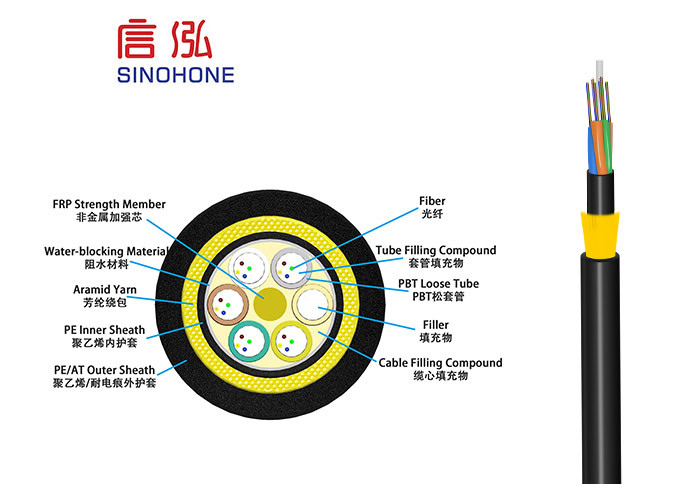

Layer Stranding ADSS Fiber Optic Cable PE Outer Sheath For Outdoor Power System

Characteristics:

• PE outer sheath for overhead power lines such as 10kv, 35kv.
• AT outer sheath for power lines such as 110kv, 220kv.
• The deliberate design of uses of aramid yarn can satisfy the demands on the conditions, such as climate, various spans and sag etc.
• Good performance of tensile strength and temperature.
• Small diameter and lighter of the cable reducing the loss caused by ice and wind on the towers and supporting structures.

Standards:

• IEC60794-1
• DL/T788
• YD/T980

Product Features:

• Low optical fiber transmission loss and low dispersion.
• Endow cables with excellent mechanical properties and environmental performance due to reasonable design and precise control over excess length of optical fibers in loose tube and cabling mode.
• Keep structure compact, and protect the cable from stress under hostile environment by use of SZ stranded structure.
• Fill waterproof cable gel outside the reinforcer and inside cores, ensuring its moisture proof and water proof effect.
• Provide more excellent moisture proof effect as well as bullet proof function as the cores are wrapped longitudinally by steel tape.
• The steel strand as the self supporting member meets the higher tensile strength.

Technical Parameters

Note:

1. Data in the table described may take as reference, it was calculated on the conditions, such as zero height difference and assume the sag value is 1-1.2%.
2. To design the structure of the cable according to the concrete situations, climate and the customer's demands.
3. Cable core can be designed dry structure according to customer's demands.
